SNH.4020.TYB3R3MT00
Description: 3.3 µH, DCR 0.088 Ω, Isat 4.7 A, Irms 3.4 A
Brand: SOREDE
Model: SNH.4020.TYB3R3MT00
Product Code: C53308858
Package Type: SMD, 4×4 mm
Packaging: Tape and Reel
Gross Weight: 0.257233 g
Order & Delivery Information
- Trial orders: 50–100 pcs
- Small-batch orders: 500–1,000 pcs
- Standard-batch orders: 3,000–5,000 pcs
- Large-volume orders: 10,000+ pcs
- Non-stock / made-to-order lead time: 2–10 weeks
- Distributor lead-time enquiries: Response within 1 business day

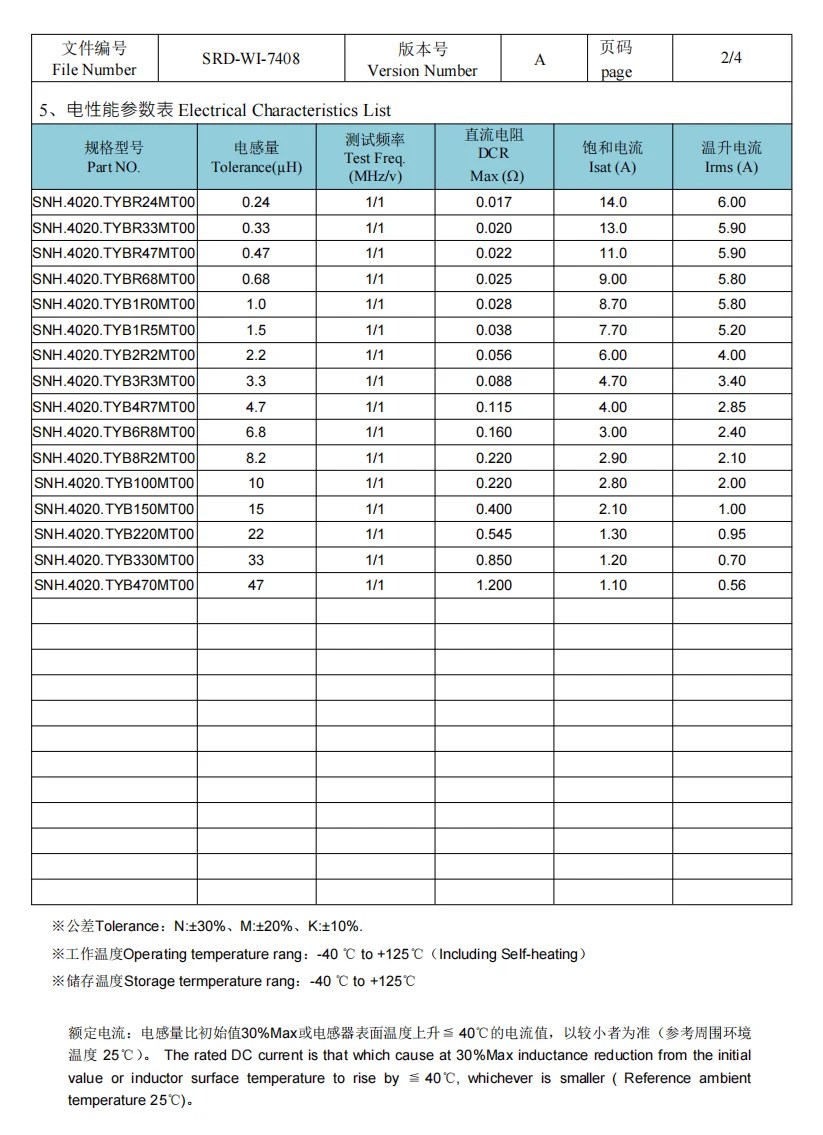

Specification Preview
| Product Catalog | Power Inductor |
|---|---|
| Inductance Value | 3.3µH |
| Tolerance | ±20% |
| Rated Current | 3.4A |
| Saturation Current (Isat) | 4.7A |
| DC Resistance (DCR) | 88mΩ |
