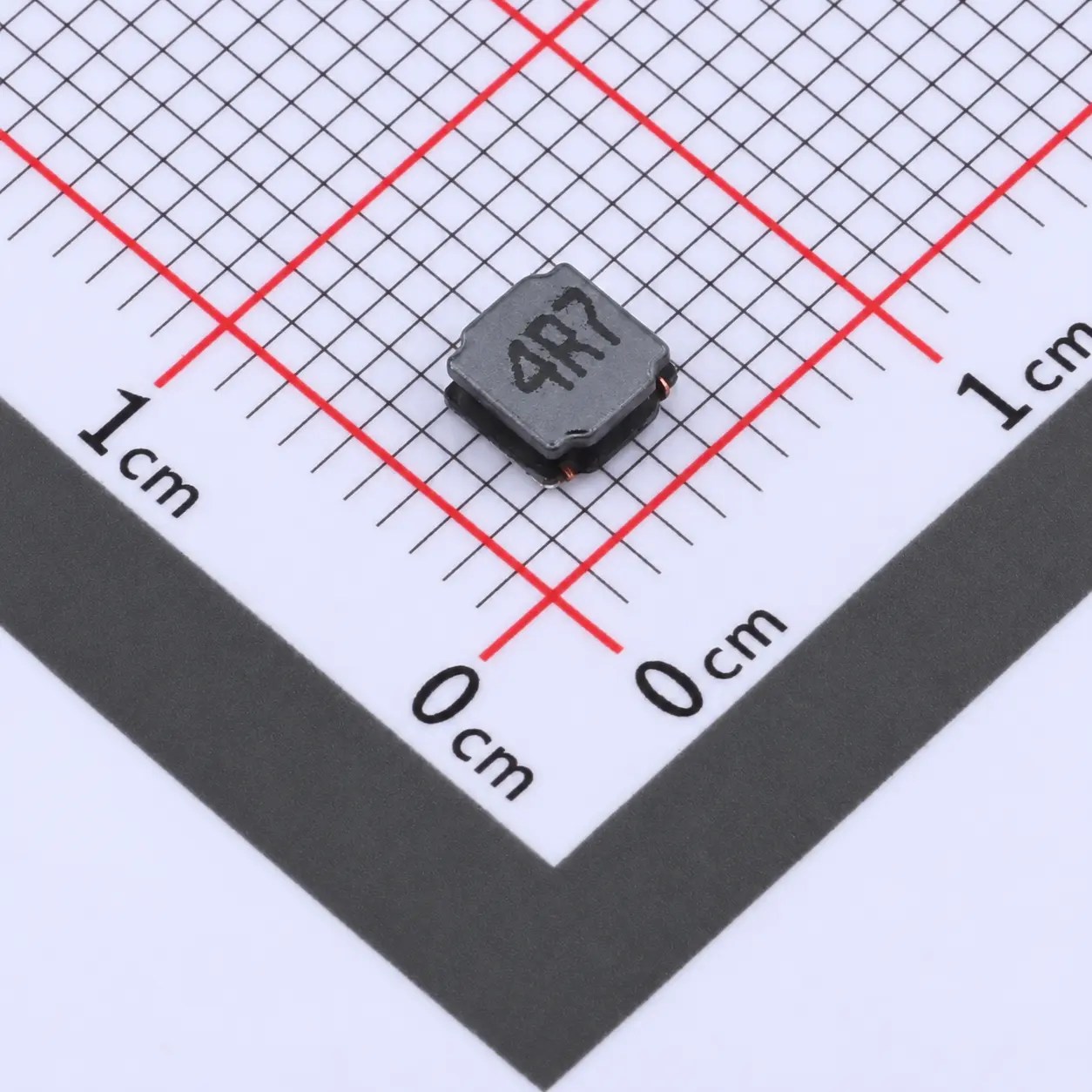

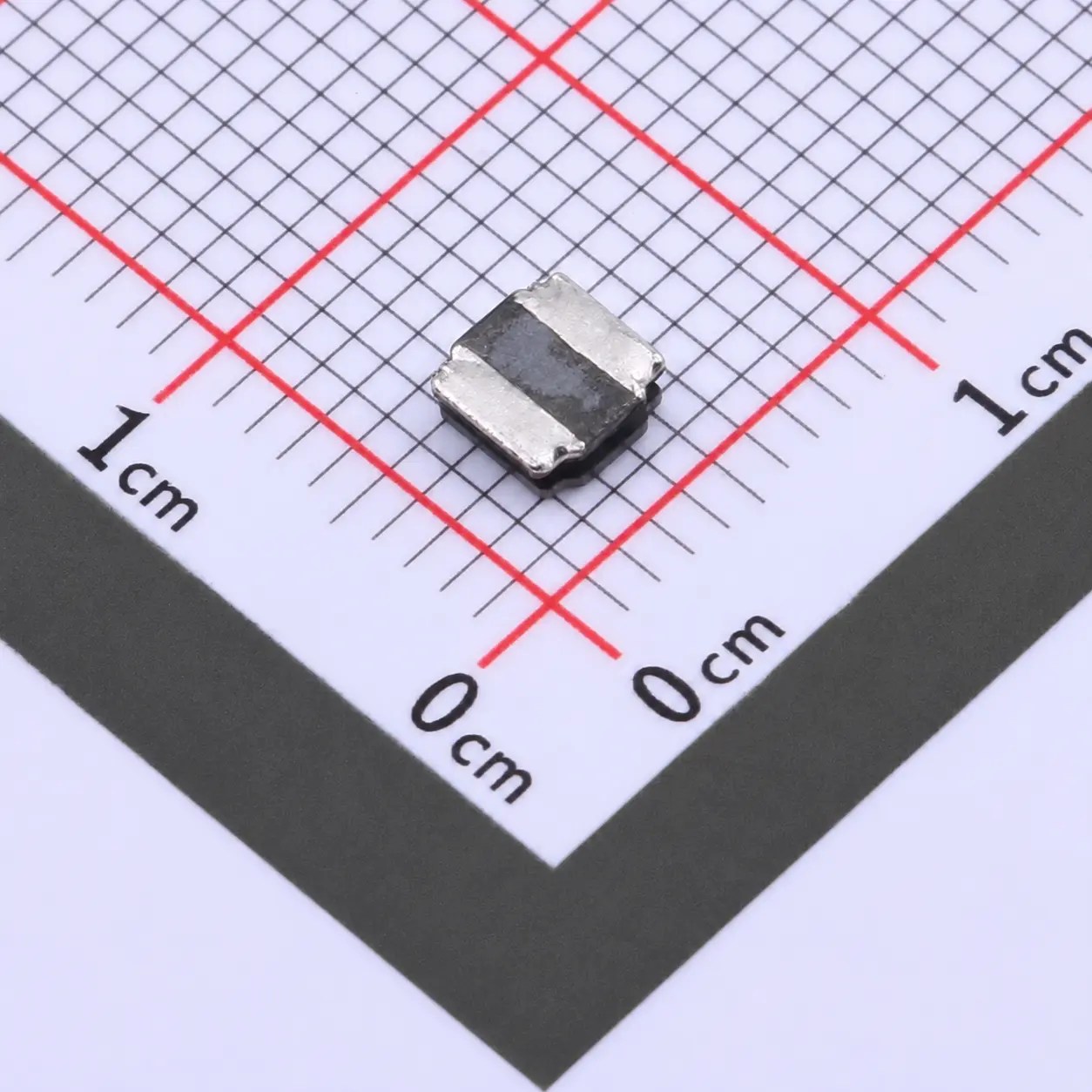

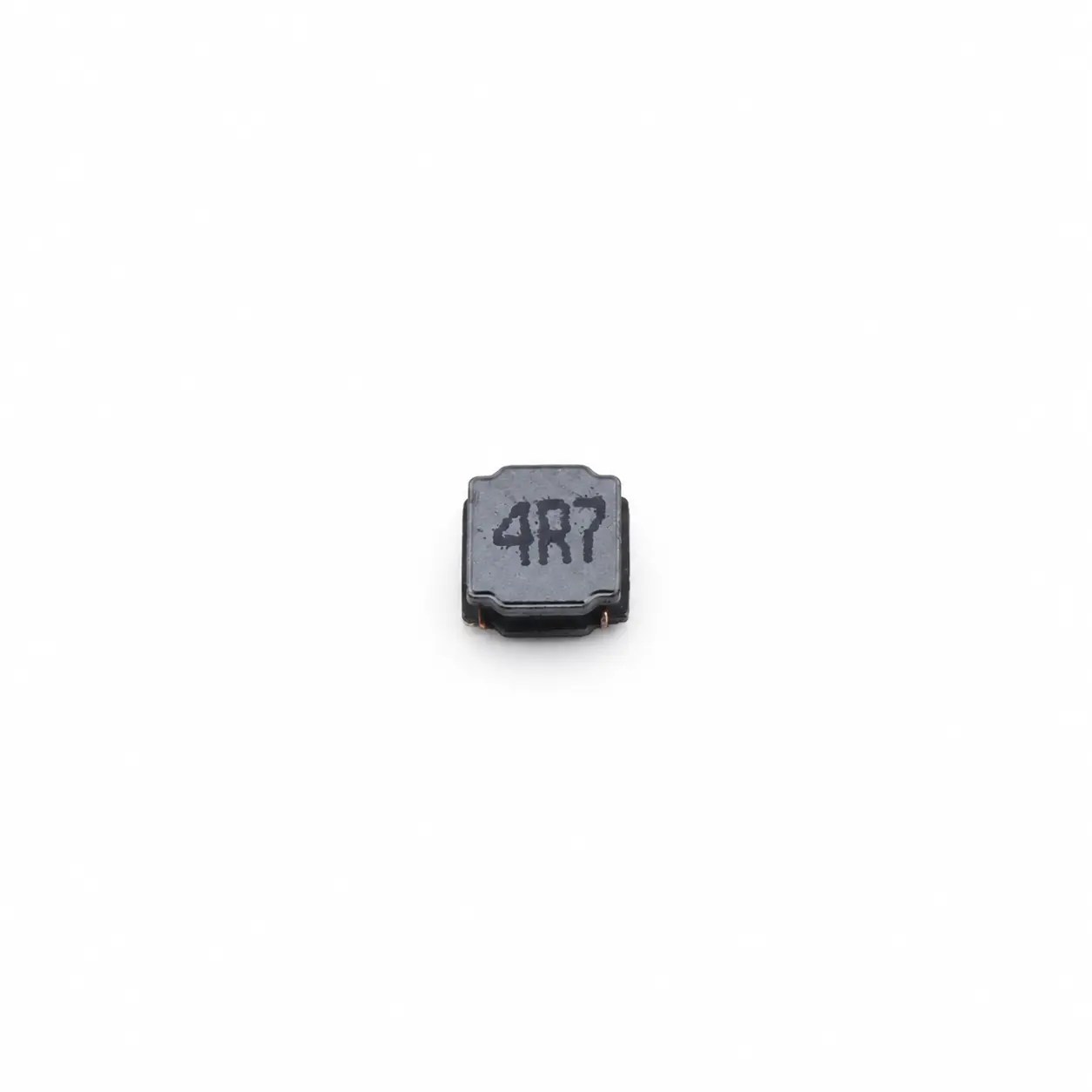

SNR4018TYD4R7M
Description: SMD, 4x4x1.8mm, power inductor (magnetically shielded)
Brand Name: SOREDE
Model Number: SNR4018TYD4R7M
Product Code: C2827380
Package Type: SMD, 4x4mm
Packaging: Tape and reel
Gross Weight: 0.215 g
Order & Delivery Information
- Trial orders: 50–100 pcs
- Small-batch orders: 500–1,000 pcs
- Standard-batch orders: 3,000–5,000 pcs
- Large-volume orders: 10,000+ pcs
- Non-stock / made-to-order lead time: 2–10 weeks
- Distributor lead-time enquiries: Response within 1 business day

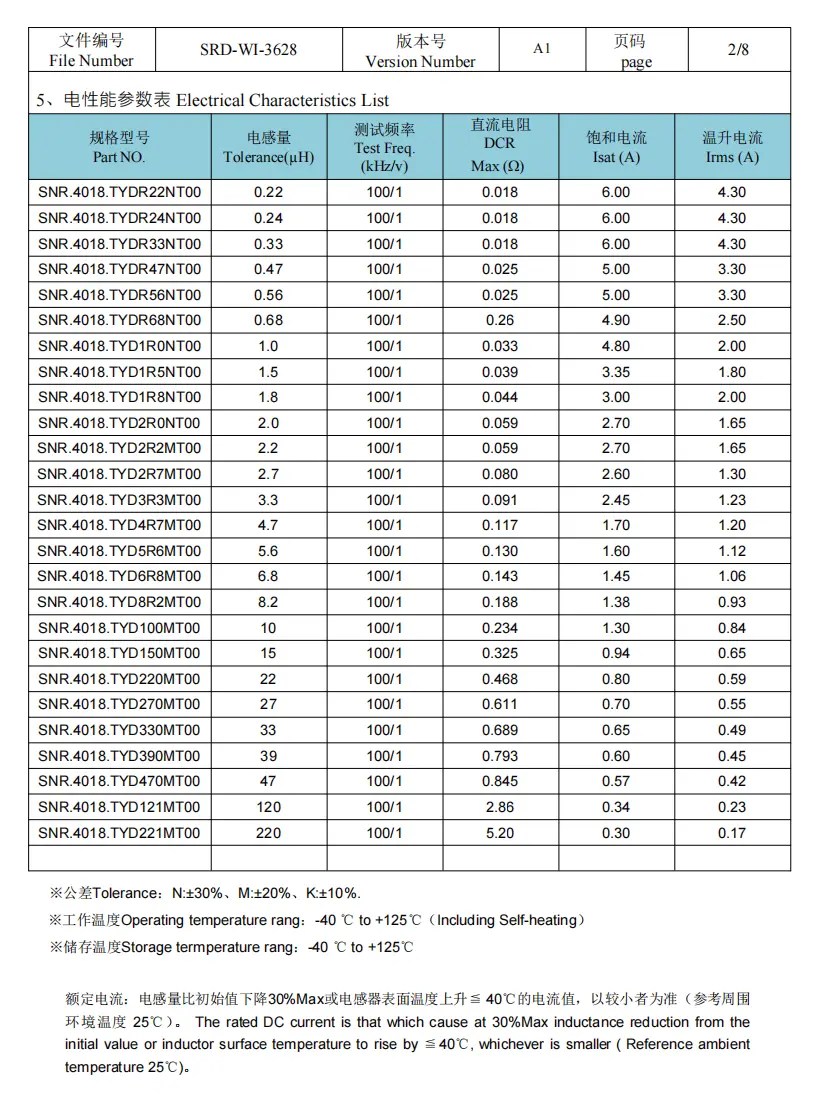

Specification Preview
| Product Catalog | Power Inductor |
|---|---|
| Inductance Value | 4.7µH |
| Tolerance | ±20% |
| Rated Current | 1.2A |
| Saturation Current (Isat) | 1.7A |
| DC Resistance (DCR) | 117mΩ |
